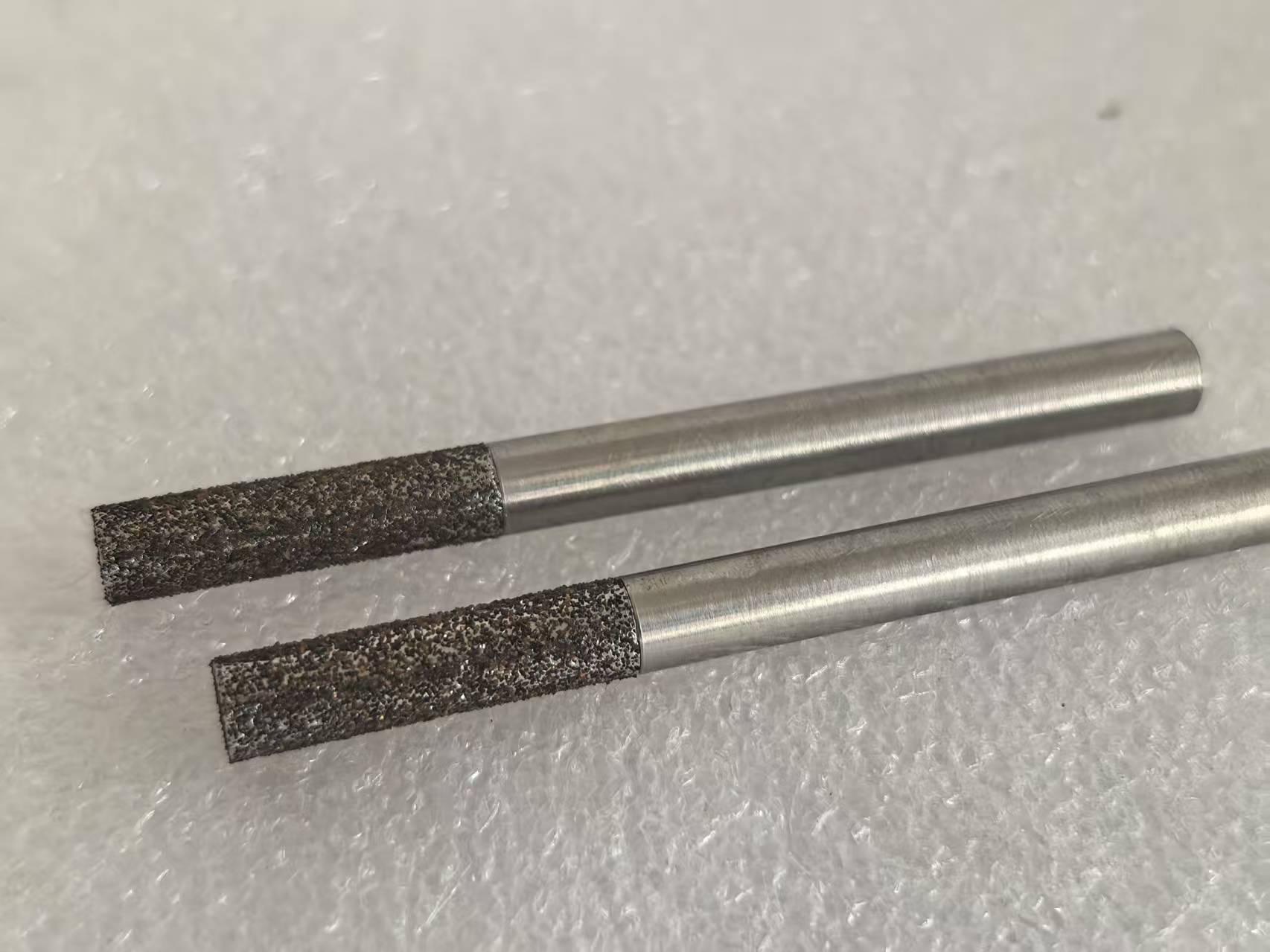

Customizable CBN Grinding Pins for Different Sizes and Types for Various Applications
Product Information Of CBN Grinding Head
CBN (Cubic Boron Nitride) grinding points are high-performance abrasive tools designed for precision grinding of hard and tough materials. They are commonly used in tool sharpening, mold finishing, and aerospace component machining.
Typically Applications:
✔ **Tool & Die Sharpening** – HSS, carbide tools, punches, dies
✔ **Aerospace Components** – Turbine blades, superalloys (Inconel, titanium)
✔ **Automotive** – Gear grinding, crankshaft finishing
✔ **Mold & Die Polishing** – Complex contours, fine details
✔ **General Metalworking** – Deburring, chamfering, weld cleaning
Main Data Of Diamond Mounted Points
| Name | CBN Grinding Head | |
| Bond | Resin bond , Vitrified bond , Metal bond &Electroplated | Material | Aluminium, Steel, etc |
| Abrasive | Diamond and CBN | Packing | box, |
| Size | D:25mm-500mm T: 5mm-40mm H:10mm-127mm | OEM/ODM | Available |
| Type code | 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 14E6Q, etc. |
| Usage | Mainly used for grinding , sharping and polishing . Widely used in the filed of PCD, CVD, PCBN ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc |
| Sample Cost | Depend on the size and quantity |
Advantages of CBN Grinding Points**
✅ **Harder than aluminum oxide** – Lasts longer on hardened steels
✅ **Thermal stability** – Performs well at high temps (unlike diamond, which degrades on ferrous metals)
✅ **Consistent cutting** – Less loading compared to conventional abrasives
✅ **Precision finishes** – Can achieve fine surface finishes (Ra < 0.2 µm)
FAQ:
1.What material does your product use ?
Our product abrasives are diamond or CBN , which are electroplated, resin, vitrified, or metal bonded.
2.Do you offer samples ?
Yes, In order to start the new and happy cooperation , we can provide our customers sample for testing at the first order , we believe that you will be satisified with our product quality.
3. Can we go to visit your factory ?
Of course yes , welcome to visit our factory , you can see our production capacity and technoly. Remeber to contact our sales first before your visit.
4.How can you guarantee the quality ?
We examine the quality 3 times before strat the delivery , first : pre-production , second : post-production , third : before delivery . So do not worry about this.
NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheel head according to your requirement.
